What a LeRobot Dataset Carries and What It Leaves Behind

A robot demonstration can contain thousands of pieces of information. Camera frames, joint positions, gripper movements, timestamps, and task descriptions all have to stay connected for the recording to make sense.

However, such robot data often works well only inside the lab that recorded it. Issues arise when the recording leaves the lab, because for years robotics teams stored the same kinds of data in very different ways.

Some teams saved robot data as message logs, while others used formats built for reinforcement learning or scientific computing. The robot could work with all of them, but the training software typically couldn’t. An embodied dataset collected in one lab could take days of work before another team could load it, and converting it was rarely as simple as changing the file type.

Hugging Face built the LeRobot dataset format to fix this, so robot demonstrations could be stored, published, and loaded in one consistent structure. Today, many robotics datasets are available in the LeRobot format, and various training tools and pretrained models support it.

Teams sitting on older datasets can convert them too, and some do it at scale. For example, the AgiBot World dataset contains more than a million trajectories from 100 robots across 2,976 hours, and the team provides a script to convert the data into the LeRobot dataset format.

It sounds simple enough. But take a closer look at what happens during a conversion, and you’ll find the tricky part: a dataset can move into a structure other teams can read and still lose parts of the recording. Every format is built to hold certain kinds of information, and anything that doesn’t fit has nowhere to go. The files still open normally, so nothing tells you something is missing.

In this article, we’ll look at what a LeRobot dataset contains, how it compares with other formats, and what can get lost during conversion, so you know what to check before you train on one. Let’s get started!

What Is a LeRobot Dataset?

LeRobot is an open-source Python library that Hugging Face launched in May 2024. It was released under Apache 2.0 and covers the robot learning process from collecting data to running a trained policy on hardware.

The LeRobot dataset format is the part that handles how that data is stored. A LeRobot dataset is a package of different parts, and each part stores a different piece of the robot’s demonstration.

In the LeRobot format, one recorded demonstration is called an episode. An episode is one complete attempt at a task, from the moment the robot starts to the moment it finishes. That is the main unit the format works with.

For instance, a single frame of a robot reaching for a cup tells you very little on its own. The tools for editing and inspecting these datasets work on whole episodes for the same reason. You can delete, split, and visualize by episode index.

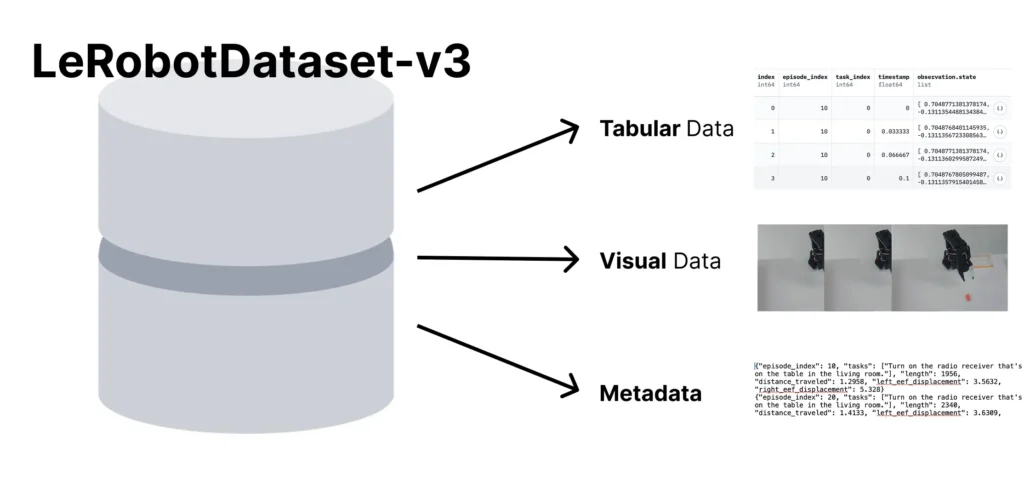

Here’s an overview of what goes into a LeRobot dataset:

• Tabular data: Joint positions, gripper state, actions, and timestamps are stored in Parquet files. These are the low-dimensional, high-frequency signals recorded during the demonstration.
• Video: Camera recordings are stored as encoded MP4 files rather than separate image frames, with video sharded per camera. If the robot has three cameras, the dataset carries three video streams, each lined up with the joint and gripper readings recorded at the same moment.
• Metadata: Separate JSON and Parquet files describe what the data contains. They cover the feature schema, the capture frame rate, the task descriptions, normalization statistics, and where each episode starts and ends inside the shared files.

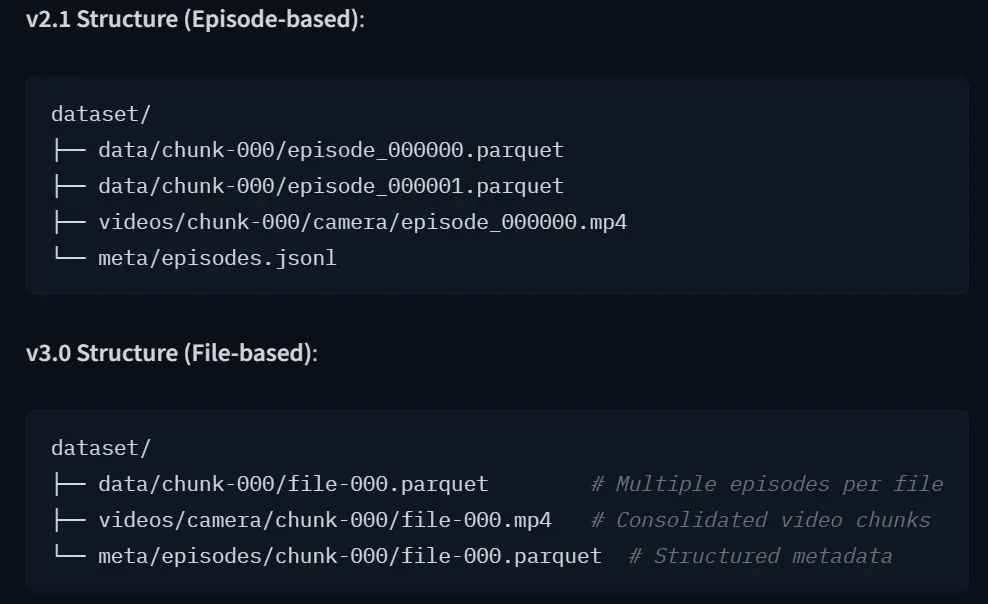

• Chunked layout: Rows and video frames from many episodes are concatenated into larger files instead of each episode getting its own. Episode boundaries are recovered from metadata rather than filenames, which is what lets the format scale as episodes grow in number. The latest version of the LeRobot dataset format, version 3, is what introduced this layout.

All of this travels with the dataset, so the information explaining what the data means doesn’t have to live in a separate lab README or with the person who collected it. That makes the dataset easier to move between teams and training systems.

But there is also a limit. A dataset can only carry information that its structure has a place for.

Why Robot Data Converged on the LeRobot Dataset Format

Before the LeRobot dataset format existed, how robot data was stored depended on the team collecting it.

On one hand, Google’s robotics work used a TensorFlow-based format built for reinforcement learning, where the robot learns by trying a task and getting a score for the result. On the other hand, labs with a scientific computing background used HDF5, which lets you organize files however you like. Meanwhile, teams working with ROS kept raw robot message logs.

Each choice suited the team that made it, but none of them traveled well. Open X-Embodiment showed what happened when researchers tried to bring these datasets together. The project assembled data from 22 different robots across 21 institutions, covering 527 skills, into a single format that could handle different numbers of cameras, depth sensors, and point clouds.

Putting the data together was easy. Making sure it all meant the same thing was much harder. Depending on the dataset, the same number could mean moving the gripper to an exact point, moving a few centimeters from its current position, or moving at a particular speed. Feed the wrong value to a robot, and it can move somewhere you didn’t intend.

The LeRobot dataset format made this easier by giving teams a common structure to work with. Many of the dataloaders that feed training, the visualizers that play episodes back, and the pretrained policies teams fine-tune from expect that same structure.

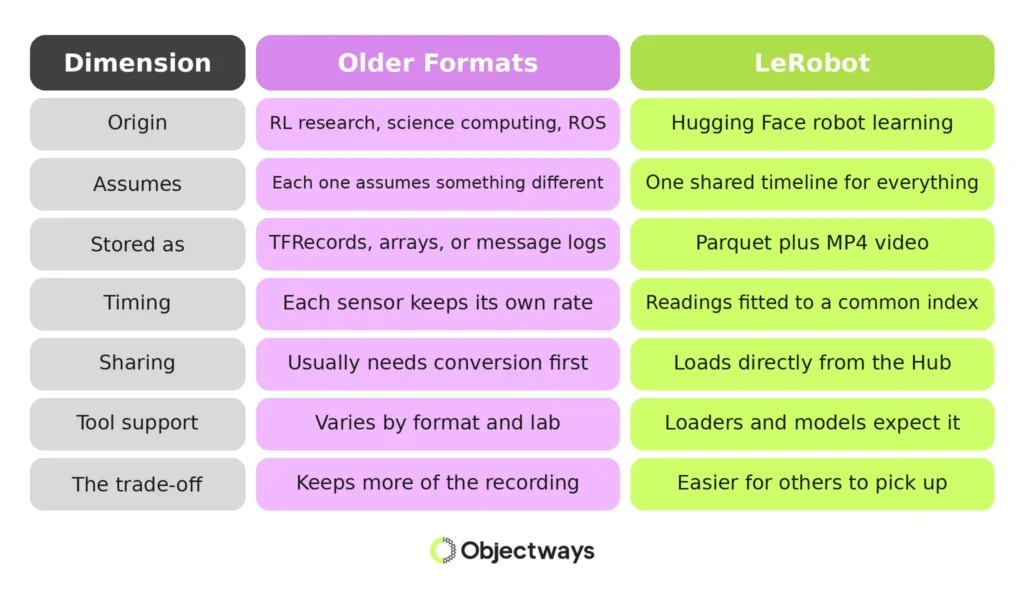

LeRobot vs RLDS vs HDF5 vs MCAP: What Each Format Assumes

Now that we have seen why LeRobot became a common format for robot datasets, let’s understand how it compares with the formats that came before it.

Each dataset format came from a different part of the robotics field, so each was built around different needs. It is crucial to understand what each format assumes about the data, because that assumption decides what it stores well.

Here’s what each format is designed for:

• RLDS: Reinforcement Learning Datasets, an episode-and-step structure designed for sequential decision-making data. It supports observations, actions, rewards, discounts, terminal flags, and custom metadata, but reward is optional, so the format can also represent demonstrations that don’t have a conventional reward signal.
• HDF5: Hierarchical Data Format version 5, which came from scientific computing and is still common in individual labs. It gives you folders and arrays and lets you organize them however you want. That flexibility means two labs can create files that both open correctly while being structured completely differently.
• MCAP: A container format designed for recording and replaying timestamped multimodal data. It is used in the ROS (Robot Operating System) ecosystem and is well suited to sensor logs where different streams have their own timestamps.
• LeRobot: This format is built for PyTorch and for sharing on the Hugging Face Hub, which is the platform Hugging Face uses to host models and datasets. That combination gives it broad tool support. LeRobot organizes the training-facing representation around a common frame or time index, so converting asynchronous sensor streams may require resampling or alignment decisions.

There is a trade-off running through all of this. A format that lets you keep the original data however it came, like HDF5, is harder for another team to pick up.

Whereas a format that makes sharing easy, like LeRobot, has already made decisions about how your data should be organized. The right choice depends on your training setup and what you need to keep from the original recording, not on which format is newest.

What a LeRobot Dataset Conversion Quietly Drops

Next, let’s look at what happens during the conversion process itself. A conversion script can reorganize the data it is given, but it can’t recreate information that was never recorded. It also can’t automatically preserve information that the target structure or conversion pipeline doesn’t know how to carry across.

Start with the source itself. Before converting a dataset, check exactly what the version you have contains.

A dataset may already have been filtered, compressed, or reduced for training, so the files you receive may contain less information than the original recording. Converting that version to LeRobot doesn’t bring the missing data back.

Then look at how each part of the recording maps into the new structure. LeRobot provides a standardized way to organize robot-learning data, including video, tabular signals, and metadata.

But a conversion still has to decide how the source dataset’s features should be represented. If a signal, annotation, or piece of metadata isn’t mapped into the resulting dataset, it may be left behind even though the rest of the recording converts successfully.

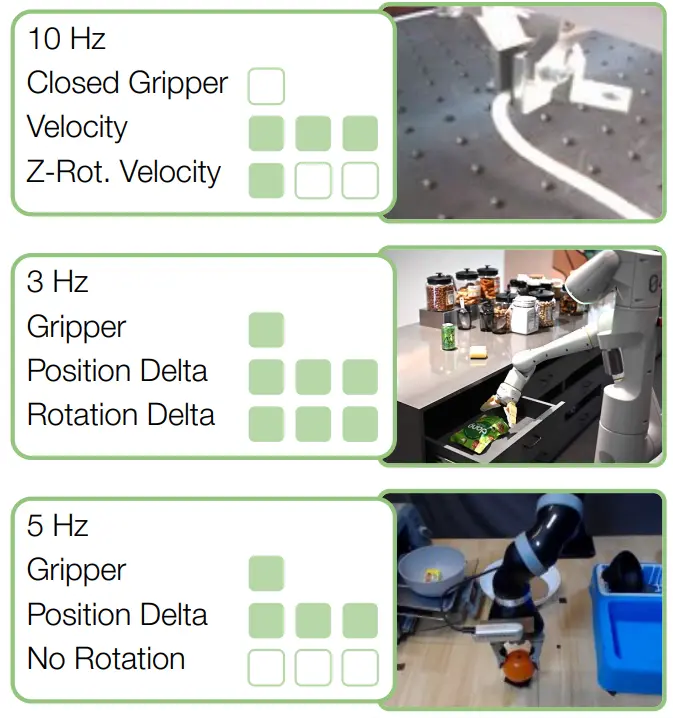

Timing is another place where information can change. Different sensors may record at different frequencies and with their own timestamps. A conversion may align those streams to a common frame structure, which can require resampling or interpolation. If the original timestamps and sampling relationships aren’t preserved, the converted dataset may no longer contain enough information to reconstruct the original timing exactly.

Calibration needs the same attention. Camera intrinsics, camera poses, robot configuration, and other calibration information may be stored separately from the main sensor data. If a conversion pipeline doesn’t carry that information into the new dataset, the recordings can still look perfectly normal while losing information that matters for tasks involving geometry or precise spatial relationships.

The same applies to annotations and other metadata. Task labels, coordinate conventions, sensor descriptions, and preprocessing information can be just as important as the raw measurements themselves. If they are omitted or changed during conversion, the resulting files may still load correctly while their meaning has changed.

That is the quiet part of data conversion. A successful conversion doesn’t necessarily mean a complete conversion. The episodes can load, the videos can play, and the dataset can pass basic checks while some information from the original recording is no longer available.

How to Inspect a LeRobot Dataset: 5 Things to Check

Some of what a conversion drops only shows up when you check the converted files against what the original recording held. Other problems are visible in the files themselves. It’s often faster to start there, then go back to the source for the rest.

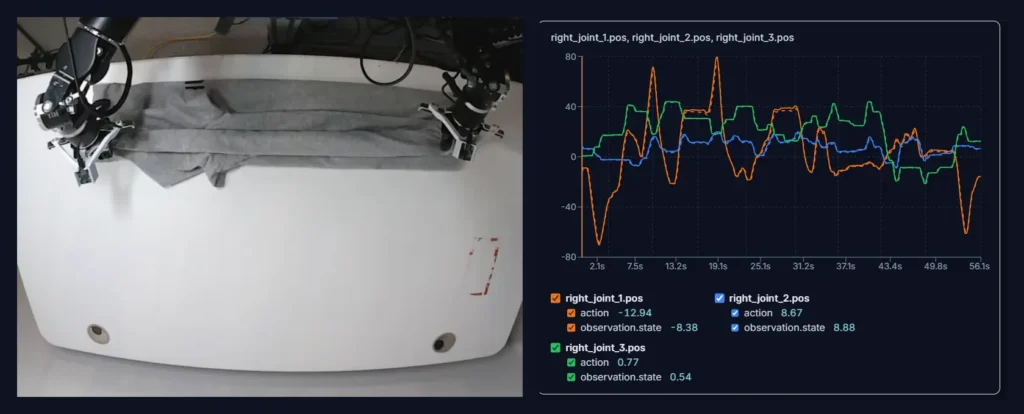

Opening a dataset and checking a few episodes is straightforward. The LeRobot dataset visualizer runs in a browser and plays episodes with the video and sensor graphs moving together.

You can watch the demonstration while seeing what the robot was recording at the same time. There is also a command-line version if you want to visualize a dataset stored on your own machine.

Here’s what to look for:

• Movement that stops: Long stretches where the robot barely moves usually mean the operator paused or the recording started too early. A policy trained on them can learn to stay still when it should be acting.
• Motion that jumps: Jerky playback usually means frames were lost during recording or storage. The robot moved smoothly, but the data no longer shows that, so a policy can learn a movement that never happened.
• Episodes that run long or short: An episode much longer than the rest may contain a failed attempt or a long pause. One that is much shorter may have ended before the task was complete.
• Metadata that doesn’t match the card: The frame rate, episode count, and sensors in the files should match what the dataset card claims. Headline figures are often rounded or written before the final upload.
• Values that don’t match the robot: The state readings should match the robot named in the description. If the joint count or movement range doesn’t fit that machine, something may have been mislabeled during conversion.

LeRobot Dataset Licenses: Why the Format Doesn’t Tell You What You Can Use

A LeRobot dataset can tell you exactly how its files are organized, but it can still leave one important question unanswered: can you actually use the data? That depends on the license. A dataset can be easy to download, convert, and load while still having restrictions on how you can use it.

Two datasets on the Hub show this clearly. RealSource World holds more than 11,000 episodes of dual-arm manipulation, while LIBERO is a simulation benchmark from UT Austin, re-published on the Hub in LeRobot format. Both load through the same tooling, but their terms are completely different.

LIBERO carries an Apache-2.0 license, which permits commercial use. RealSource World is released under CC BY-NC-SA, which doesn’t permit commercial use, and it asks for your contact details before you can download anything.

The license can also vary based on the copy you happen to find. LIBERO appears on the Hub more than once, and another widely used copy carries CC-BY-4.0 rather than Apache-2.0. Same benchmark, different terms, depending on which repository you pull from.

A conversion script changes how the data is stored. It can’t change who is allowed to use it. A non-commercial license is fine while you are testing an idea, but it becomes a problem once a model trained on that data ships in a product. So check the license and the specific repository you took the data from before the conversion work starts, not after.

5 Things to Ask a Robot Data Supplier Before Collection Starts

Let’s say you’re collecting or buying robot data for training. What should you look at before the files arrive? Teams tend to judge a dataset by its size, but the way the data was captured and delivered matters just as much.

Here are the main factors to check:

• Capture format: Find out what the recording system originally stored, not just what you receive. If the data has already been converted, some information may have been left behind along the way.
• Synchronization: Look for the actual timing difference between the sensors. Once video, joint readings, and other signals are placed on one timeline, the original timing differences may no longer be visible.
• Calibration: Make sure the camera calibration comes with the dataset. If it is stored separately, a conversion process may leave it behind. That can make the recordings harder to use for tasks that depend on accurate camera positions.
• Failed attempts: Check whether unsuccessful episodes are included. Slips, drops, and failed attempts show a policy what happens when a task doesn’t go as planned, which can help it learn how to recover.
• Delivery format: Ask your supplier to deliver your data in the format your training pipeline already reads. If your pipeline expects a LeRobot dataset, having the supplier convert it means one less conversion on your side, and minimal chances of losing something the original recording held.

Every item on that list is easier to arrange before data collection starts than to fix afterward. Doing it in-house means setting up a recording rig and training operators. It also involves handling calibration and checking the data before it reaches your training pipeline. That is why many teams bring in a data partner instead.

That’s exactly what we specialize in at Objectways. We collect teleoperation, egocentric, and UMI gripper demonstrations and deliver them in the format your physical AI training stack uses. We also handle the annotation, validation, and quality checks needed to make those recordings ready for training.

Portability Is Where Robot Data Quality Gets Tested

The LeRobot dataset format solved a problem that used to cost teams days. A dataset recorded in one lab can be much easier for another team to load without writing a completely custom parser.

That convenience has an edge to it. A shared structure works because it is the same every time, which means anything the conversion pipeline has no defined way to represent may be dropped, transformed, or left outside the resulting dataset. That is why the last check before training shouldn’t be whether the dataset loads.

Watch a few episodes. Hold the metadata up against the dataset card. Read the license while there is still time for the answer to matter. An hour here is cheaper than finding out after a training run why the policy behaves the way it does.
